Loflin Tractor Vertical Root Grapple

Get this Compact Tractor Vertical Root Grapple if you need a lightweight, American-made powerhouse that uses a high-volume vertical jaw and dual independent cylinders to secure massive brush piles with an unbreakable grip.

Sold out
$2,538.00


In-stock items ship within 10 business days, made-to-order units typically ship in 3–5 weeks. For real-time availability or a custom freight quote, talk to our shipping team at 844-498-2313.

Availability: checkmark icon Out of stock

Notify me when back in stock

Easy Shipping Quotes

Any Time. Any Day.

Give us a call!

(844)-498-2313

Speak with an Engineer

We offer 24-hour chat support

Secure Online Shopping

Commercial Buyers!

Unlock Exclusive Benefits Today:

  • Access to Premium Forestry Attachments & Outdoor Equipment
  • Competitive Bulk & Business-Only Pricing
  • Priority Support from Our Equipment Specialists
  • Expert Guidance on Installation & Setup
  • Free Consultation to Match You with the Right Equipment
  • Personalized Recommendations for Your Operation
  • Exclusive Offers on New and Hard-to-Find Equipment
  • Dedicated Account Manager for Ongoing Support
Highlights

Ideal For

  • Compact Tractor Owners: Engineered specifically to match the hydraulic flow and lift capacity of 25–45 HP machines like the Kubota L-Series, John Deere 3-Series, and Mahindra Max.
  • Vertical Debris Piling: The specialized vertical jaw is perfect for "swallowing" tall, fluffy brush piles and oversized tree canopies that would roll out of a standard grapple.
  • Precision Root Raking: Ideal for pulling up invasive vines and saplings while the skeleton bottom allows your valuable topsoil to sift back onto the ground.
  • Storm & Site Cleanup: Quickly managing fallen limbs, jagged logs, and tangled fence lines with a high-volume opening that secures loads firmly against the back frame.

'Need to Knows'

  • Loflin Compact Tractor Vertical Root Grapple Design: Featuring a unique vertical cylinder orientation that increases your jaw opening height and clears your sightlines from the operator's seat.
  • Dual Independent Clamping: Each side of the grapple adjusts to the load independently, allowing you to secure a thick log and a thin branch simultaneously without losing your grip.
  • High-Tensile Grade 50 Steel: Built in the USA with premium 3/8" steel tines that provide industrial strength without the excessive weight that bogs down compact loaders.
  • Internal Hose Routing: Hydraulic lines are protected within the steel frame and behind heavy-duty cylinder shields to prevent expensive snags in thick brush.
  • Universal Quick-Attach: Equipped with the standard SSQA (Skid Steer Quick-Attach) plate, making it compatible with almost every modern tractor loader and mini-skid.

Warranty & Support

  • Warranty: Includes a 1-Year Limited Parts Warranty for peace of mind.
  • American Made: 100% manufactured and welded in North Carolina, USA.
  • Ready for Work: Ships fully assembled with 1/2" flat-face couplers and high-quality Parker brand hydraulic hoses included.
  • Greaseable Pivot Points: Every moving part features recessed grease zerks, ensuring a long life and smooth operation through years of heavy use





Product Details

Experience better visibility and a taller bite with the uniquely engineered Loflin Tractor Vertical Root Grapple.

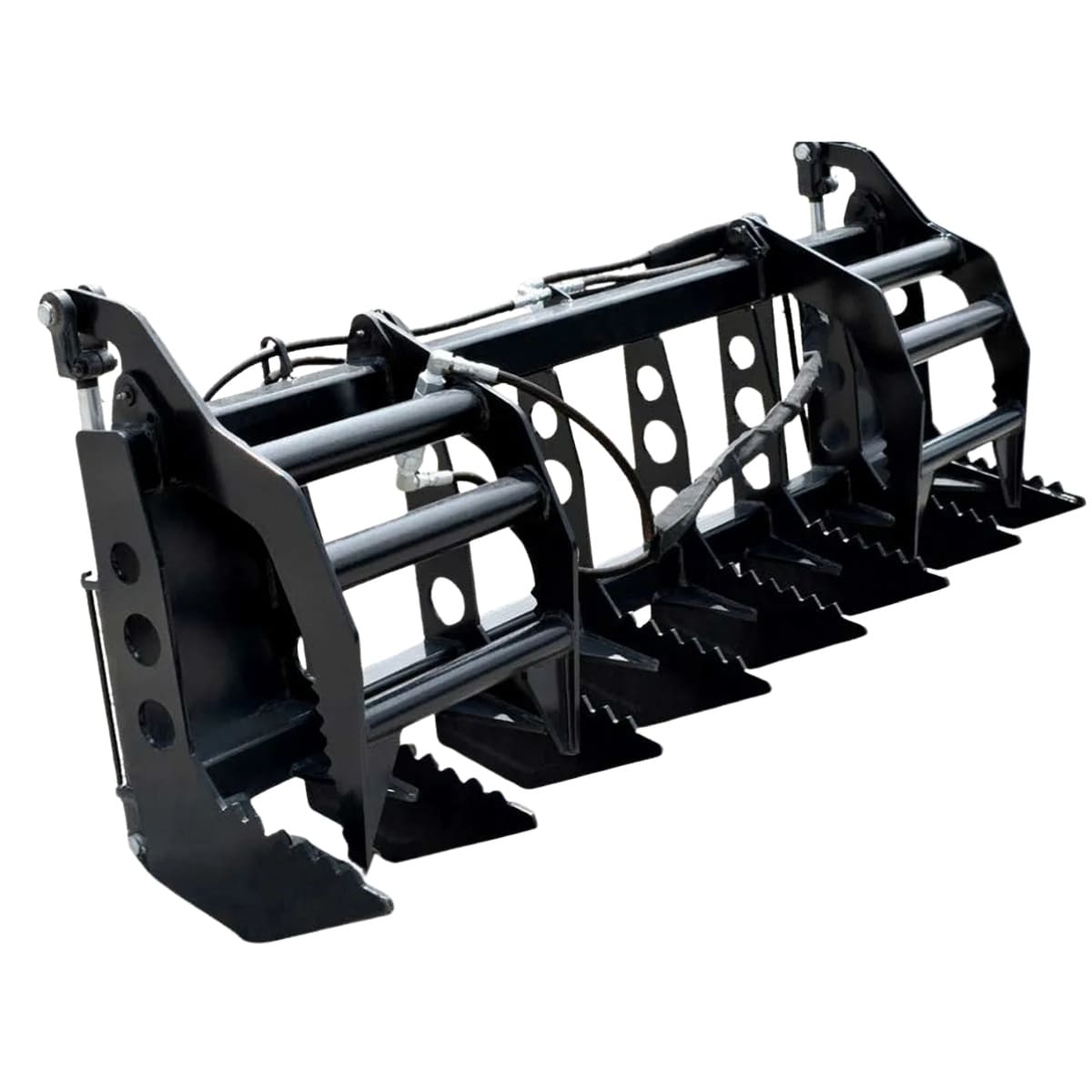

Black loflin tractor vertical root grapple attachment on a white background front view

Struggling to clear tall brush piles with a shallow bucket, or worried that a heavy skid steer grapple will leave your compact tractor feeling dangerously unbalanced?

The Loflin Compact Tractor Vertical Root Grapple is the heavy-duty answer for landowners who need to maximize the utility of their 25–45 HP machines. Unlike standard horizontal grapples that struggle to surround "fluffy" brush, the vertical jaw geometry is designed to swallow massive, vertical stacks of debris. By positioning the hydraulic cylinders vertically, this grapple creates a towering opening that secures logs and brush piles firmly against the back frame, keeping the load centered and your tractor stable.

Stop settling for thin, imported attachments that "smile" (bend) the first time you hit a buried root. Every Loflin unit is handcrafted in the USA using high-tensile Grade 50 steel, ensuring the teeth stay straight and the frame stays true even during aggressive prying. Because your tractor has a specific lift limit, we’ve engineered this frame to be high-strength without the unnecessary bulk. This means you can actually use your machine's full lifting capacity for the debris you're moving, rather than just carrying the weight of a heavy attachment.

Reclaim your property and transform the way you handle land maintenance. With dual independent cylinders, you can confidently grab uneven logs or mixed brush without fear of the load shifting or sliding out. This isn't just a grapple; it’s a professional-grade clearing tool sized perfectly for the modern compact tractor.

If you want a "buy-it-once" attachment that protects your machine’s hydraulics and handles the work of three men with chainsaws, the Loflin Vertical Series is the ultimate upgrade for your property.









Why Choose The Loflin Compact Tractor Vertical Root Grapple?





Vertical Cylinder Geometry

By mounting the cylinders vertically, we’ve created a jaw that opens significantly wider and taller than traditional designs. This "high-volume" mouth is perfect for swallowing large brush piles and securing upright debris that standard grapples simply can't reach around.



Precision Pressure Control

The dual-cylinder system works independently, meaning the left and right jaws apply equal pressure even on lopsided loads. This prevents logs from "weaving" or sliding out while you’re driving across uneven terrain.



Tractor-Specific Engineering

We used 3/8" Grade 50 steel to ensure industrial durability while keeping the overall weight low (approx. 450-525 lbs). This allows your 25-45 HP tractor to maintain its balance and lifting efficiency without stressing the loader arms.



Debris-Only Raking

The open-bottom skeleton design is the key to clean property management. The tines rake through the topsoil to snag roots and rocks, while letting the valuable dirt fall through—saving you weight on the lift and keeping your burn piles manageable.



Internally Routed Hydraulics

Standard grapples often have exposed hoses that snag on branches. Loflin routes the lines through the steel frame and adds heavy-duty cylinder shields, so you can dive deep into thickets without worrying about a punctured hydraulic line.



Reinforced Back-Dragging Capability

The cleanup process doesn't end when the pile is moved. We’ve reinforced the rear frame and tines so you can aggressively rake in reverse. This allows you to "back-drag" your work area, smoothing out the soil and pulling up any remaining small debris or vines for a professional, finished look across your property.



Enhanced Operator Visibility

One of the biggest challenges with compact tractors is seeing your work over the hood. By mounting the hydraulic cylinders vertically, we’ve cleared the "clutter" from the top of the grapple. This open-sightline design gives you a much better view of your tines from the operator's seat, allowing for surgical precision when prying out roots or navigating near fence lines and buildings.





Specifications



Loflin Fabrication Tractor Vertical Root Grapple Technical Specifications

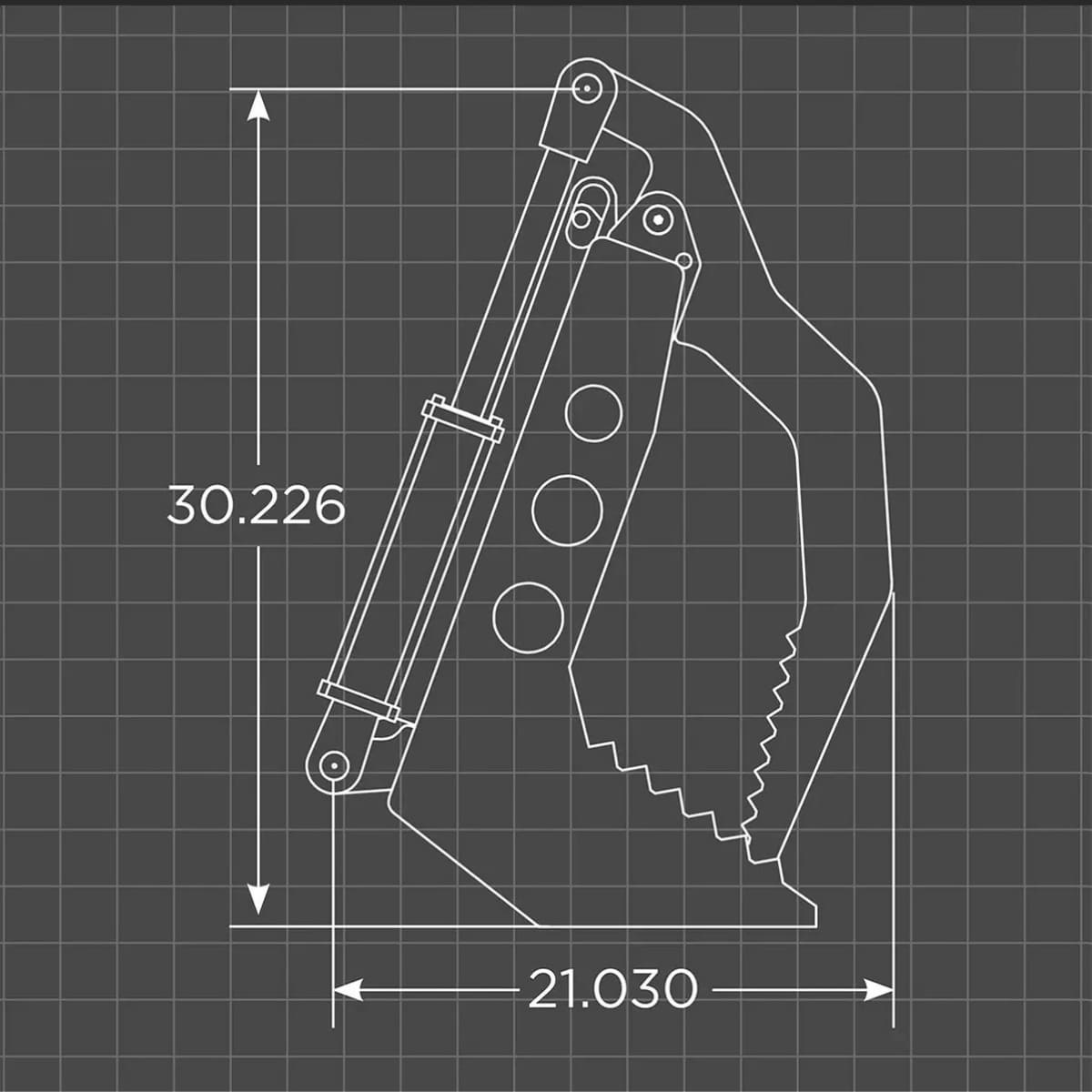

Technical drawing of a loflin fabrication compact tractor vertical root grapple with dimensions on a grid background grey background with white lettering
  • Machine Compatibility: Compact Tractors & Mini Loaders with Universal Quick-Attach (SSQA)
  • Recommended Horsepower: 25 – 45 HP
  • Construction Material: High-Tensile 3/8" Grade 50 Steel
  • Cylinder Type: Dual Independent Vertical Hydraulic Cylinders (3000 PSI Rated)
  • Cylinder Protection: Heavy-Duty Steel Bolt-On Cylinder Shields
  • Hydraulic Hoses: Internally Routed Parker Brand Hoses (Prevents snagging)
  • Couplers: 1/2" Flat-Face Couplers Included
  • Jaw Opening: ~33-Inch Maximum Vertical Opening
  • Width Options: 54", 60", and 66" Models Available
  • Approximate Weight: 450 lbs (54") / 485 lbs (60") / 525 lbs (66")
  • Tine Spacing: Engineered skeleton design for dirt/debris sifting
  • Pivot Points: Recessed Grease Zerks on all moving parts
  • Origin: 100% Manufactured in the USA
