Loflin Skid Steer Vertical Root Grapple

Get this Skid Steer Vertical Root Grapple if you want an industrial-strength, American-made clearing tool that gives you a better view from the cab and a towering 50-inch jaw capacity to haul massive loads without losing your stability.

Sold out
$3,547.00


In-stock items ship within 10 business days, made-to-order units typically ship in 3–5 weeks. For real-time availability or a custom freight quote, talk to our shipping team at 844-498-2313.

Availability: checkmark icon Out of stock

Notify me when back in stock

Easy Shipping Quotes

Any Time. Any Day.

Give us a call!

(844)-498-2313

Speak with an Engineer

We offer 24-hour chat support

Secure Online Shopping

Commercial Buyers!

Unlock Exclusive Benefits Today:

  • Access to Premium Forestry Attachments & Outdoor Equipment
  • Competitive Bulk & Business-Only Pricing
  • Priority Support from Our Equipment Specialists
  • Expert Guidance on Installation & Setup
  • Free Consultation to Match You with the Right Equipment
  • Personalized Recommendations for Your Operation
  • Exclusive Offers on New and Hard-to-Find Equipment
  • Dedicated Account Manager for Ongoing Support
Highlights

Ideal For

  • Professional Land Clearers: Built specifically for high-torque 65–110+ HP machines that need to move high-volume brush and forestry debris.
  • Arborists & Tree Crews: Safely transporting massive branch piles and oversized logs that standard grapples simply can't surround.
  • Storm Recovery Teams: Managing tangled, jagged debris and fallen canopies with a 50-inch jaw that swallows piles whole.
  • Industrial Site Prep: Prying out stubborn roots and clearing away heavy undergrowth while leaving the topsoil on-site.

'Need to Knows'

  • Loflin Skid Steer Vertical Root Grapple Design: Features an upright cylinder orientation that creates a massive 50-inch opening and clears your sightlines so you can see exactly what you're grabbing.
  • Dual Independent Clamping: Two 2.5" bore x 10" stroke cylinders work independently to apply even pressure to lopsided loads, keeping everything secure on rough terrain.
  • Industrial Build Quality: Hand-welded in North Carolina using 5/8" high-tensile Grade 50 steel tines to withstand the massive breakout forces of modern track loaders.
  • Total Hydraulic Protection: Parker brand hoses are routed through the steel frame and cylinders are protected by 1/4" bolt-on steel shields to prevent snags and downtime.
  • Universal SSQA Mounting: Fits all modern skid steers and compact track loaders (CTLs) equipped with the standard universal quick-attach plate.

Warranty & Support

  • Warranty: Includes a 1-year limited parts warranty for professional peace of mind.
  • American Made: 100% manufactured and tested in Denton, North Carolina, USA.
  • Job-Site Ready: Ships with standard 1/2" flat-face couplers and high-pressure hoses already installed.
  • Easy Maintenance: Every pivot point features a recessed grease zerk and 1.25" stress-relieved pins for a long, quiet service life.





Product Details

Get a better view and a bigger bite with the uniquely designed Loflin Skid Steer Vertical Root Grapple.

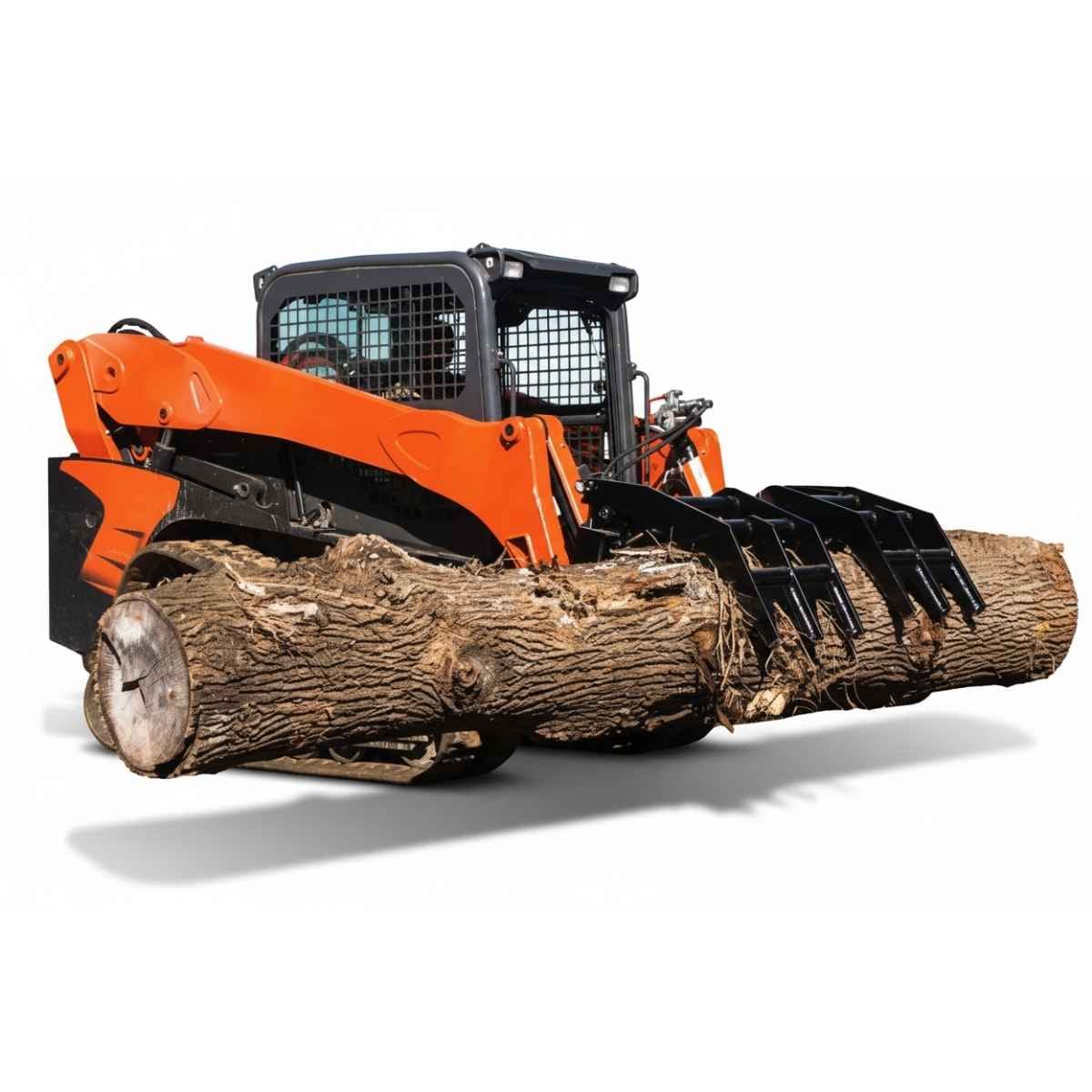

Orange skid steer loader with a loflin fabrication vertical root grapple holding a large log on a white background

Are you frustrated by standard grapples that let tall brush piles spill out the sides? Most horizontal designs simply don't have the reach or "mouth" depth needed for high-volume forestry work.

The Loflin Vertical Root Grapple changes the game with its unique upright cylinder placement. This engineering choice creates a towering jaw opening that can easily swallow massive, awkward debris piles that standard grapples leave behind.

By pulling material deeper into the throat of the unit, this grapple keeps the load closer to your machine. This significantly improves your center of gravity and overall stability when navigating rough or uneven terrain with a full load.

Every unit is handcrafted in America using high-tensile Grade 50 steel for maximum durability. You can pry, rake, and lift with total confidence, knowing the frame is built to handle the breakout force of high-flow skid steers.

The dual independent cylinders ensure that each side of the jaw adjusts to the specific shape of your debris. This allows you to pin a thick, tapered log and a pile of loose brush simultaneously with a secure, unbreakable grip.

This Attachment is designed with a skeleton-style bottom that acts as a built-in sieve to leave your valuable topsoil on the ground. The Loflin Vertical Root Grapple is the superior choice for professional land clearers who demand a cleaner, faster, and more efficient workflow.









Why Choose The Loflin Vertical Root Grapple?





High-Volume Vertical Geometry

The vertically mounted cylinders allow the jaw to open much taller than standard models. This "deep-throat" design is specifically engineered for arborists and clearing crews who need to manage high-volume brush and jagged, standing debris.



Dual Independent Clamping Force

Standard grapples often lose grip on irregular loads. The Loflin system uses dual cylinders that operate independently, allowing one side to pin a thick stump while the other side secures a thin branch with equal force.



Industrial Grade 50 Steel

Built to withstand the forces of modern high-flow skid steers and track loaders, this grapple uses premium high-tensile steel to prevent the tines from bending or twisting during aggressive prying and demolition work.



Clean-Burn Sifting Design

The precision-spaced bottom tines allow you to rake through the soil to snag roots while letting the dirt fall through. This ensures your burn piles are free of unnecessary soil, making your cleanup faster.



Maximum Operator Visibility

By moving the hydraulic cylinders to a vertical orientation, the top of the grapple remains clear. This gives the operator an unobstructed line of sight to the tines, making it easier to navigate around fence lines and buildings.



Built for Raking and Back-Dragging

The job isn't finished just because you moved the pile. We reinforced the back of this frame so you can tilt it forward and rake in reverse to clean up the leftovers. It’s perfect for smoothing out the dirt or pulling up those last few annoying vines and roots once the heavy lifting is done.



Shielded from Falling Debris

When you’re grabbing a massive, tall pile of brush, things tend to fall back toward your machine. We didn't leave the hydraulics out in the open where a stray branch could snag a line. The hoses are tucked inside the steel frame and the cylinders are covered by heavy-duty guards, so you don't have to worry about a "hidden" branch putting you out of commission for the day.





Specifications



Loflin Fabrication Vertical Root Grapple Technical Specifications

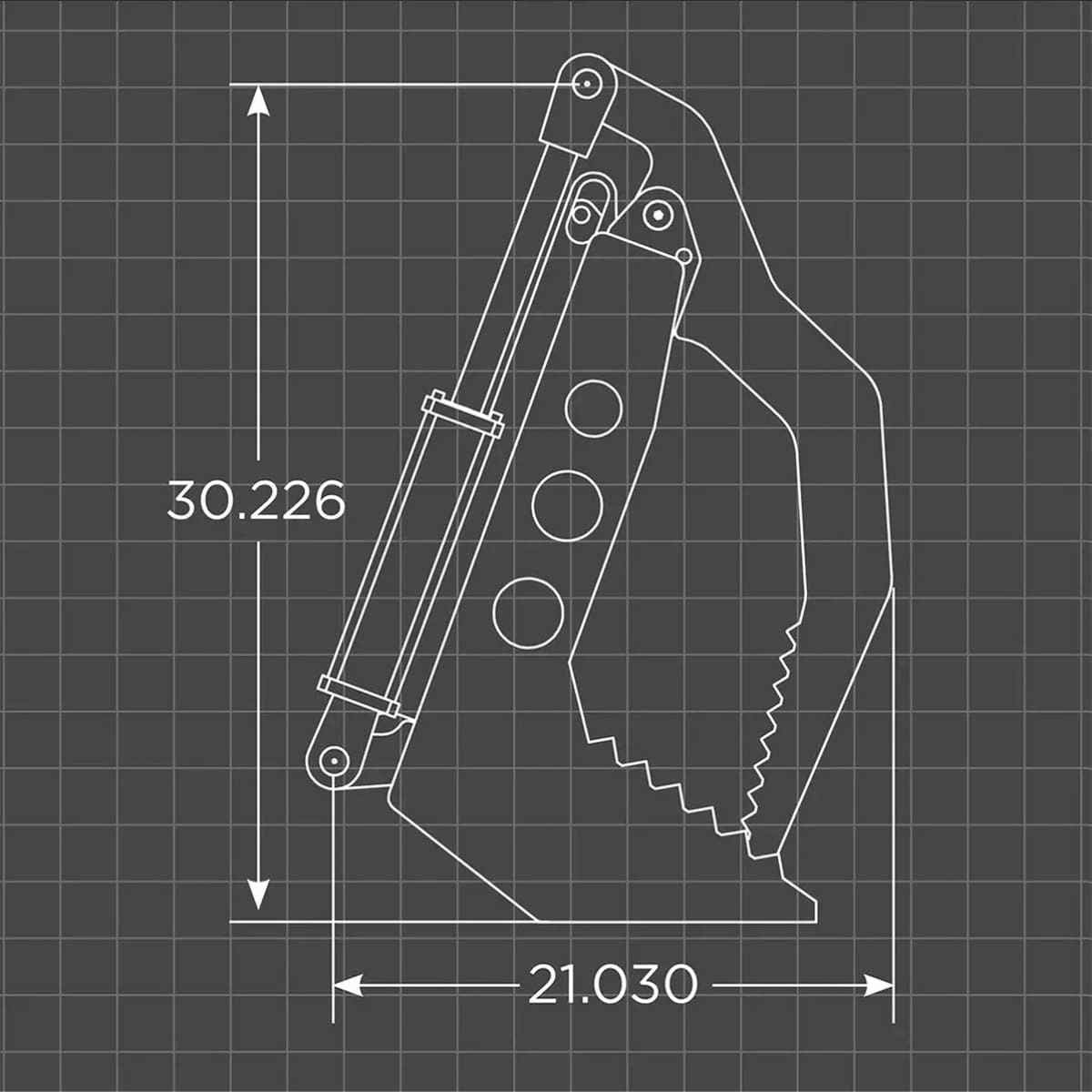

Technical drawing of a loflin vertical root grapple with dimensions on a grid background
  • Machine Compatibility: Standard and High-Flow Skid Steers / Track Loaders (SSQA)
  • Recommended Horsepower: 65 – 110+ HP (Built for high-torque machines)
  • Construction Material: 5/8" High-Tensile Grade 50 Steel Tines
  • Cylinder Design: Dual Independent 2.5" Bore x 10" Stroke Vertical Cylinders
  • Hydraulic Pressure: Rated for up to 3,500 PSI
  • Cylinder Protection: 1/4" Steel Bolt-On Cylinder Shields
  • Hydraulic Hoses: 4,000 PSI-rated Parker Hoses (Internally routed)
  • Couplers: Standard 1/2" Flat-Face Couplers included
  • Jaw Opening Height: Massive 50-inch opening (Measured from tip to tip)
  • Available Widths: 72", 78", and 84"
  • Approximate Weight: * 72" Model: ~1,040 lbs
  • 78" Model: ~1,110 lbs
  • 84" Model: ~1,180 lbs
  • Tine Spacing: ~9 inches (Perfect for sifting soil while retaining brush)
  • Pivot Points: 1.25" Stress-Relieved Pins with recessed Grease Zerks
  • Origin: 100% Manufactured in Denton, North Carolina, USA
