Loflin Mini Skid Steer Land Plane

Sold out
$1,025.00


In-stock items ship within 10 business days, made-to-order units typically ship in 3–5 weeks. For real-time availability or a custom freight quote, talk to our shipping team at 844-498-2313.

Availability: checkmark icon Out of stock

Notify me when back in stock

Free shipping

Any Time. Any Day.

Give us a call!

(844)-498-2313

Speak with an Engineer

We offer 24-hour chat support

Secure Online Shopping
Highlights

Ideal For

  • Gravel Driveway Maintenance: The most efficient tool for restoring gravel driveways; it cuts down high spots and fills in potholes in a single pass without the "washboard" effect of a bucket.
  • Site Grading & Leveling: Perfect for general contractors preparing a job site for sod or seed. It smooths out ruts and bumps to create a perfectly flat finish.
  • Backfilling Trenches: Uses the rear cutting edge to drag loose soil back into open trenches, leaving a smooth, finished surface behind you.
  • Breaking Up Hardpack: The heavy steel design allows the unit to bite into hard-packed dirt and gravel, loosening material for re-grading.

'Need to Knows'

  • Dual-Action Grading: Designed to work forward and backward. As you push or drag the plane, it accumulates material from high points and automatically deposits it into low points, leveling the ground effortlessly.
  • Heavy-Duty Frame: Unlike light-duty drags that bounce over hard ground, this unit is built with 3″ x 3″ square steel tubing and a 3/8” thick frame. The added weight keeps the plane planted for a consistent cut.
  • Aggressive Cutting Edge: Equipped with a 1/2” thick x 4″ wide cutting edge that shears through compacted soil and roots rather than just floating over them.
  • Visibility: The open-frame design gives the operator excellent visibility of the ground engagement point, allowing for precise adjustments near curbs, sidewalks, and buildings.
  • Simple Operation: Requires no hydraulics or complex controls—just hook up and drive. It turns a novice operator into a professional grader.

Warranty & Specs

  • Standard Width: Comes in a 49″ width, perfectly sized to cover the tracks of most mini skid steers while remaining maneuverable in tight spaces. (Custom sizes available upon request).
  • Steel Construction: Fabricated entirely from structural steel with a powder-coated finish to resist rust and abrasion from gravel and sand.
  • Mount Compatibility: Available with mounts for Toro Dingo (Mini-Universal) and Bobcat MT series (MT50/MT52/MT55/MT85/MT100).
  • Origin: Proudly hand-welded and fabricated in Denton, North Carolina (USA).





Product Info

Loflin Mini Skid Steer Land Plane


Stop Fighting the Washboard and Start Grading Flat

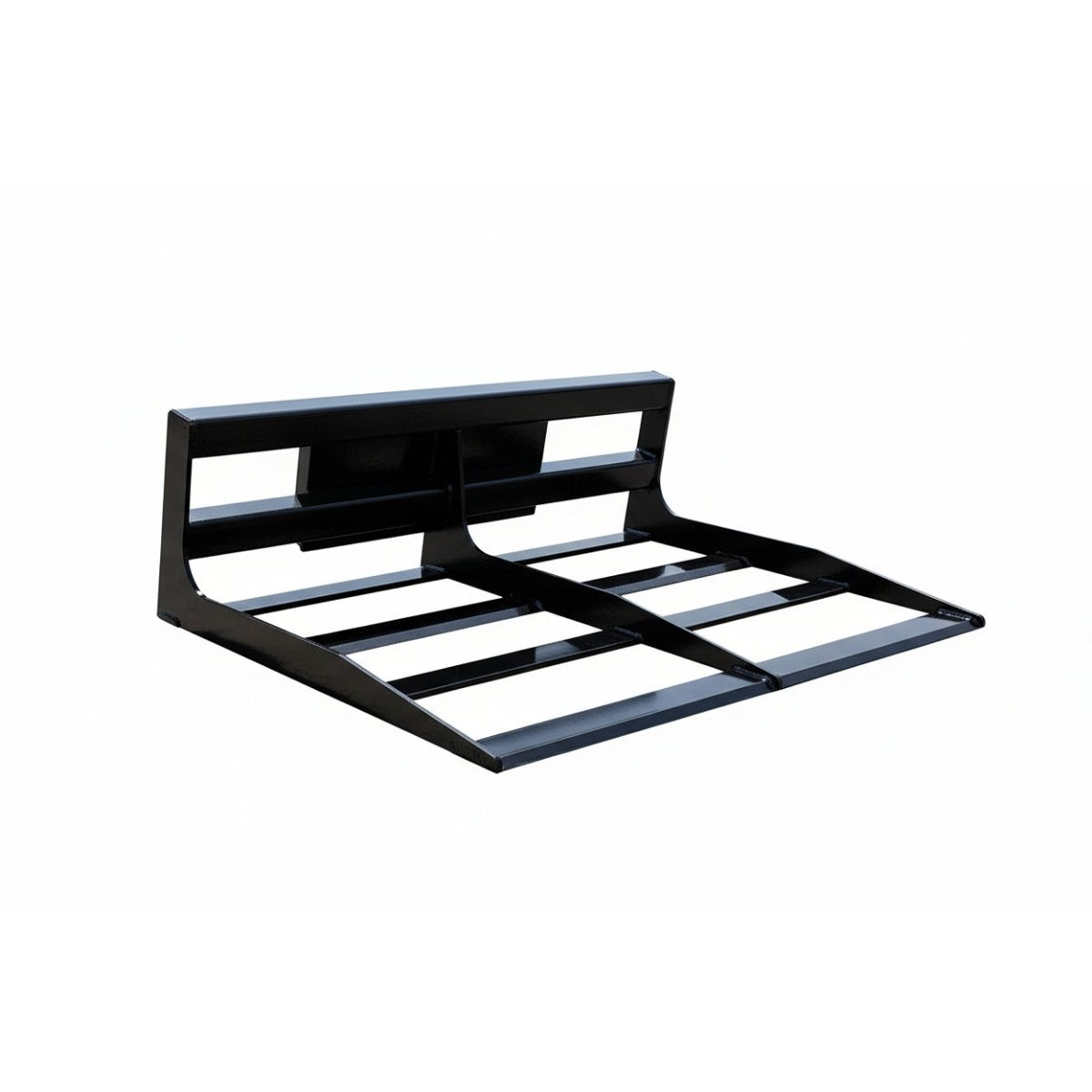

Black Loflin Mini Land Plane on a white background


Trying to grade a gravel driveway or level a job site with a standard bucket usually leaves you with a washboard mess and a lot of wasted time. The Loflin Mini Skid Steer Land Plane solves this by acting like a heavy-duty grooming tool, cutting down the high spots and carrying that material forward to fill in the potholes automatically. You get a perfectly level, professional finish in a fraction of the time it takes to back-drag with a bucket.

Most light-duty drags just bounce over hard-packed ground, doing little more than scratching the surface. This unit is built from heavy 3″ x 3″ square steel tubing and a 3/8” thick frame, providing the weight needed to keep the plane planted. It bites into the ground instead of floating over it, ensuring you are actually moving dirt with every pass.

To cut through compacted gravel and clay, you need a serious edge, not a thin strip of metal. Loflin equips this plane with a rugged 1/2” thick x 4″ wide cutting edge that shears through roots and hardpack. This aggressive design allows you to reclaim gravel that has been pushed into the mud, saving you the cost of bringing in new material.

One of the biggest advantages of this tool is its simplicity; there are no hydraulic hoses to hook up or cylinders to leak. You simply attach it to your machine and drive, letting the rigid structure do the work for you. The durable powder-coated finish protects the steel from the abrasion of sliding over sand and stone, keeping rust at bay.

Visibility is key when you are working up against a garage door or a sidewalk. The open-frame design gives you a clear view of exactly where the cutting edge is engaging the ground. This allows you to grade tight to obstacles without worrying about hitting them, making it ideal for residential prep work.

We offer this attachment in a standard 49″ width, which is perfectly sized to cover the tracks of most mini loaders while staying narrow enough for tight gates. Whether you have a Toro Dingo or a Bobcat MT series machine, the Loflin Mini Skid Steer Land Plane turns your compact loader into a finish-grading machine.











Why Choose The Loflin Fabrication Mini Skid Steer Land Plane?





Heavy Steel Construction

Built with 3″ x 3″ square steel tubing and a 3/8” thick frame to provide the weight needed to cut hard ground without bouncing.



Commercial Cutting Edge

Features a 1/2” thick x 4″ wide cutting edge that shears through compacted gravel and roots rather than riding over them.



Zero Maintenance

With no hydraulic hoses, cylinders, or grease points, this mechanical attachment eliminates the risk of leaks and downtime.



Grades Automatically

The dual-blade design cuts down high spots and carries material to fill low spots as you drive, leveling the ground without complex controls.



Covers Your Tracks

The 49″ standard width is designed to extend beyond the tires or tracks of most mini loaders, leaving a smooth finish with no tread marks.



Resists Corrosion

Finished with a durable powder coat that stands up to the constant abrasion of sliding over sand, rock, and concrete.



Secure Fitment

Available with specific mounts for Toro Dingo and Bobcat MT series, ensuring a tight connection that transfers the machine's pushing power directly to the ground.



Addition Options: Check out other Mini Skid Steer Attachment options or other Loflin Fabrication Attachments





Specifications

Loflin Mini land Plane Technical Specifications





Applications & Compatibility


Compatible With:

  • Bobcat Mini Track Loaders: Features a specific mount for the Bobcat MT50, MT52, MT55, MT85, and MT100.
  • Mini-Universal Machines: Available with a mount for the Toro Dingo, Ditch Witch, Vermeer, Boxer, Ramrod, and Wacker Neuson.
  • Compact Tractors: Custom sizes and mounts can be fabricated to fit compact tractor front-end loaders.

Engineered for Grading & Leveling: The loflin mini skid steer land plane is a pure finishing tool designed to take the guesswork out of grading. It is the primary choice for the following professional applications:

  • Gravel Driveway Restoration: The most effective tool for removing "washboard" ripples and potholes. It cuts down high spots and carries that material forward to fill in low spots automatically, restoring a smooth surface in a single pass.
  • Site Preparation & Sod Prep: Essential for general contractors needing to create a perfectly flat base for sod or seed. The plane smooths out tire ruts and bumps that a standard bucket would miss.
  • Trench Backfilling: The rear cutting edge allows you to drag loose soil back into open utility trenches, leaving a clean, finished grade without needing to change attachments.
  • Hardpack Reclaiming: The heavy steel frame provides enough down-pressure to bite into hard-packed gravel and dirt, loosening the surface material so it can be redistributed evenly.

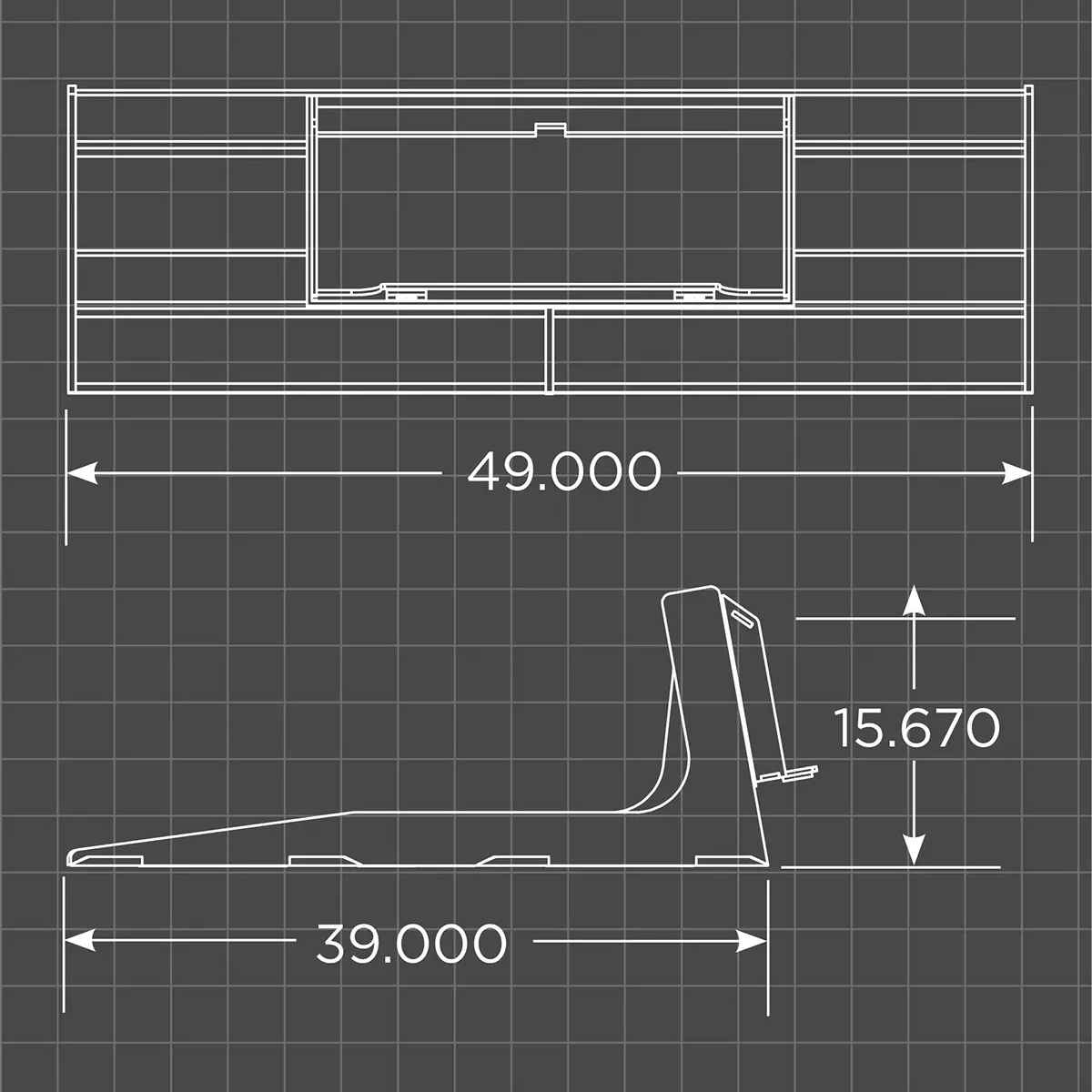

Technical drawing of a loflin fabrication mini land plane with dimensions on a grid background
Specification Technical Data
Standard Width 49" (Custom Sizes Available)
Frame Construction 3" x 3" Square Steel Tubing
Frame Thickness 3/8" Steel Plate
Cutting Edge 1/2" Thick x 4" Wide Hardened Steel
Hydraulics None (Mechanical Operation)
Mount Compatibility Toro Dingo (Mini-Universal) or Bobcat MT Series
Finish Durable Powder Coat
Manufacturing Origin Hand-Welded in Denton, North Carolina (USA)
