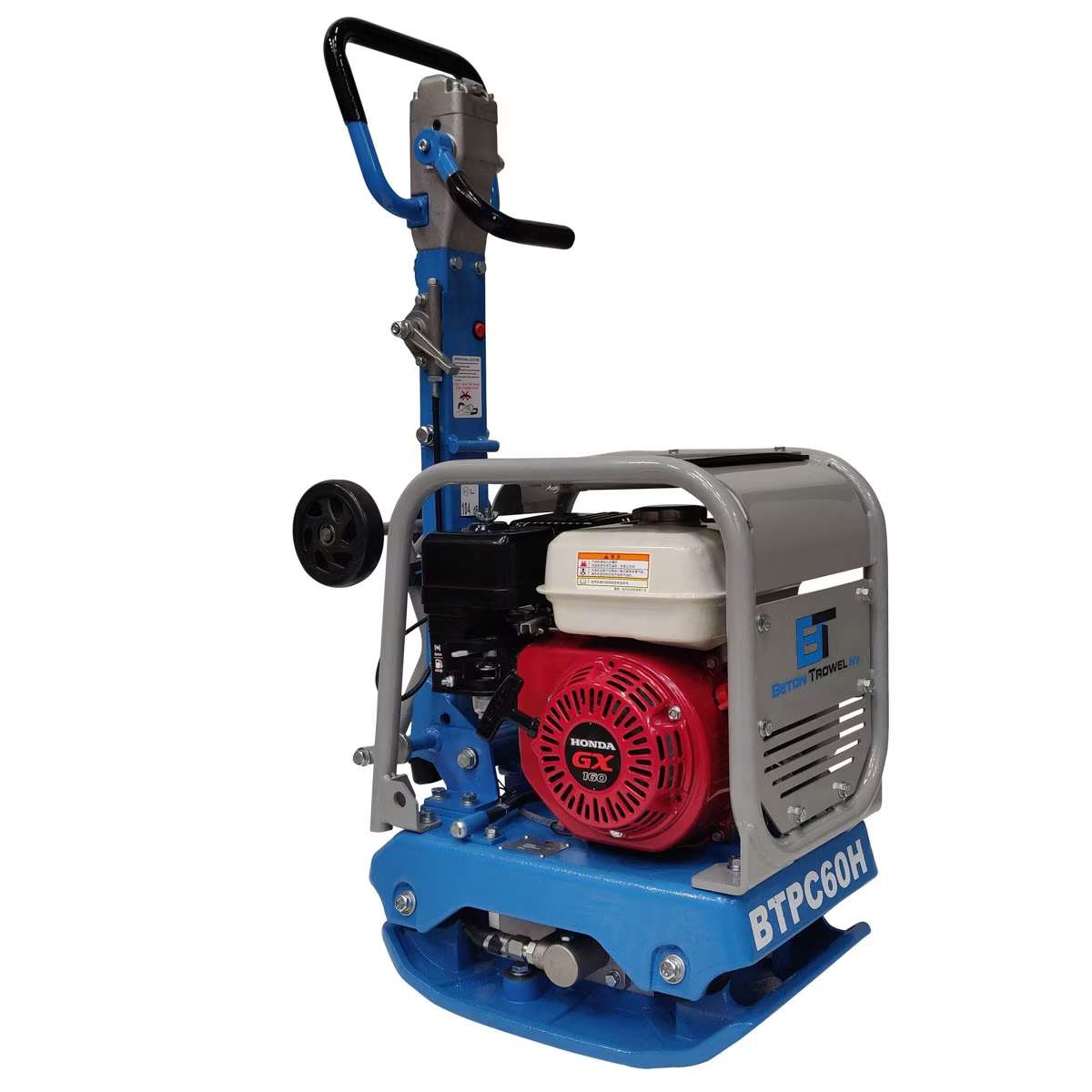

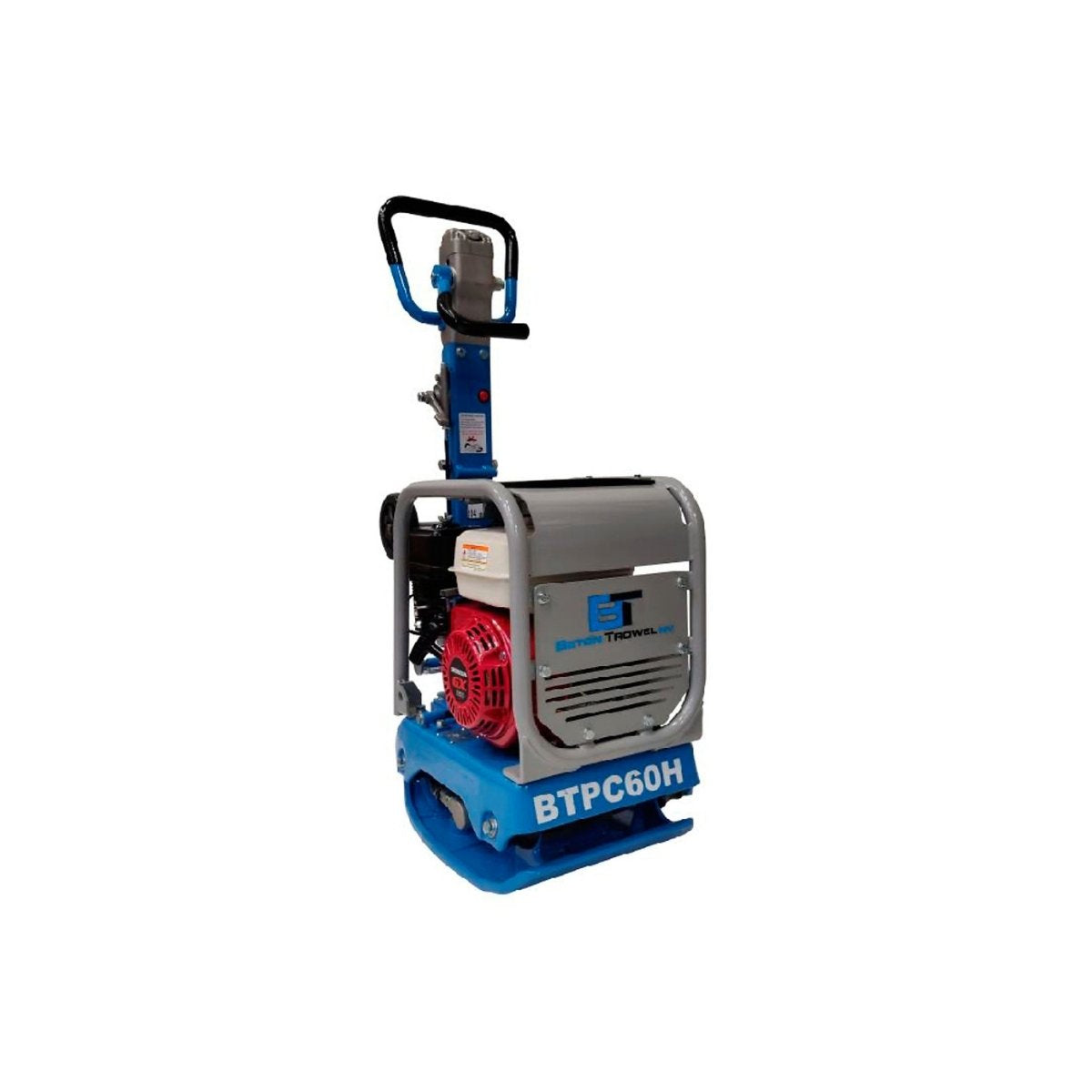

Working in deep utility trenches or confined foundation corners presents a major challenge: once the compactor is in, getting it out can be difficult. The Beton Trowel 14 Inch Reversible Plate Compactor solves this problem with its hydraulic reversing mechanism. By simply pushing or pulling the hydraulic control lever, the operator can switch travel direction instantly, allowing the machine to compact right up to an obstacle and reverse away smoothly without needing to be turned around.
At the core of this machine is the industry-standard Honda GX160 engine. Beton Trowel selected this commercial-grade powerplant to ensure the unit starts easily on the first pull, regardless of jobsite conditions. The engine provides consistent torque to drive the heavy-duty exciter, maintaining a vibration frequency of 6,000 VPM to settle cohesive soils and mixed aggregate effectively.
Despite its compact size, this unit is a heavyweight performer, delivering 3,372 lbs of centrifugal force. This is significantly more power than a standard forward plate, enabling the Beton Trowel 14 Inch Reversible Plate Compactor to achieve higher soil density in fewer passes. Whether backfilling a sewer line or prepping a footing, this machine ensures the ground is stabilized to professional standards.
Durability is a key focus of the manufacturing process, particularly in the base plate. Unlike cheaper stamped steel alternatives, this unit features a base cast from high-strength ductile iron. This material is less brittle and offers superior resistance to wear and fracture, ensuring the plate withstands years of impact against crushed rock and concrete edges.
Transporting heavy equipment is made safer and easier with the integrated hoist hook recess. Centered perfectly on the frame, this lifting point allows contractors to use an excavator bucket or crane to lower the unit into deep excavations or load it onto a truck. This feature reduces physical strain on the crew and prevents accidental drops during handling.
To protect the investment, the engine is fully enclosed within a heavy-duty tubular steel frame. This roll cage shields sensitive components from falling trench debris and accidental rollovers. Additionally, a rigid cast aluminum belt guard protects the clutch system from dust and impact, ensuring the drive system remains cool and functional even in the harshest construction environments.
Instant Hydraulic Reversing
Unlike simple forward plates, this unit features a hydraulic control lever that allows for immediate direction changes, making it the only viable option for dead-end trenches and tight corners where turning is impossible.
3,372 lbs of Impact Force
Generates nearly double the compaction force of a standard lightweight plate, allowing for deeper soil lift compaction and meeting stricter engineering density tests on structural backfill.
Honda GX160 Engine
Powered by the commercial Honda GX160, known globally for its ease of starting, fuel efficiency, and universal parts availability at any local outdoor power equipment shop.
Ductile Iron Base Plate
Constructed with a high-strength ductile iron base that resists cracking and abrasion far better than steel, ensuring the machine survives years of contact with abrasive aggregates.
Integrated Lifting Eye
Features a built-in hoist hook recess on the frame, allowing for safe and easy lifting into trenches or truck beds using an excavator or chain hoist without rigging straps.
Fully Enclosed Roll Cage
The engine is protected by a comprehensive tubular steel frame that prevents crushing damage during transport and shields the motor from falling jobsite debris.
Cast Aluminum Belt Guard
Equipped with a rigid cast aluminum guard to protect the clutch and belt system, offering superior heat dissipation and impact resistance compared to the plastic covers found on other brands.
