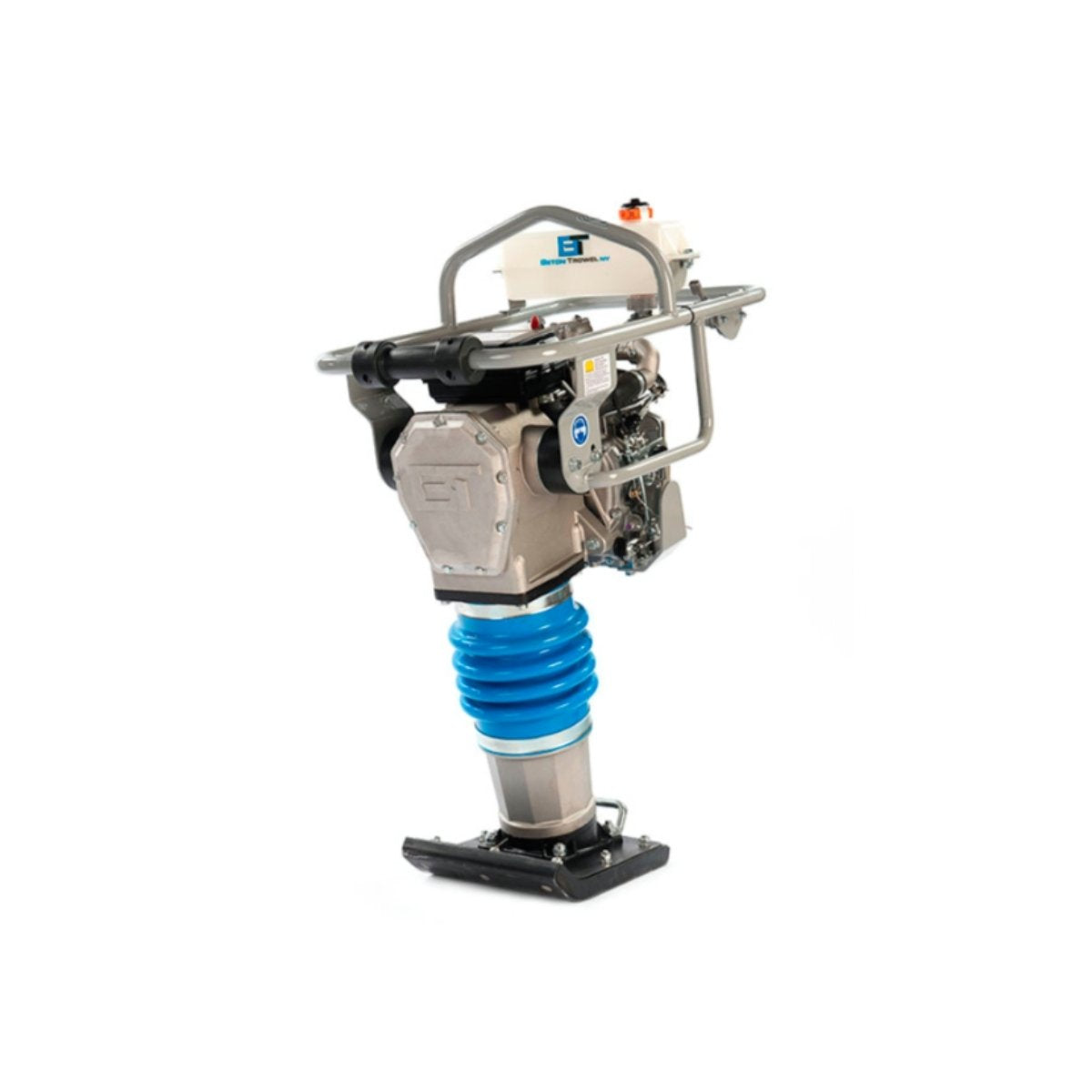

Beton Trowel Tamping Rammer Yanmar L48

Ideal For

• Diesel-Only Job Sites: Powered by a Yanmar diesel engine, making it the mandatory choice for industrial sites and mines that prohibit gasoline for safety or logistical reasons.
• Deep Trench Compaction: The heavy 190-lb operating weight combined with 4,000+ lbs of force drives deep into the soil, ideal for compacting thick lifts in sewer and water trenches.
• Cohesive Clay Soils: Designed to deliver high-amplitude impact that shears and compresses sticky clay and silt, which standard plate compactors cannot effectively consolidate.
• Utility & Pipeline Work: The 11-inch wide shoe fits perfectly in standard 12-inch trenches, allowing crews to compact bedding around pipes without widening the excavation.
• Heavy Industrial Backfill: Perfect for compacting fill around structural columns, retaining walls, and bridge abutments where meeting strict proctor density tests is required.

'Need to Knows'

• Yanmar L48 Diesel: Driven by the industrial Yanmar L48 engine, offering the convenience of single-fuel logistics for crews already running diesel excavators and skid steers.
• German-Made Bellow: The critical "boot" is a high-grade polyurethane bellow made in Germany, backed by a 3-year guarantee against cracking or tearing under stress.
• 4,046 Lbs Impact Force: Delivers a crushing 4,046 lbs of impact force per blow, ensuring deep penetration and rapid consolidation of cohesive soils.
• Heavy-Duty Filtration: Features a comprehensive filtration system including a crankcase air cleaner and two-stage fuel filter to protect the diesel injectors from trench dust.
• Cast Aluminum Throttle: Equipped with a rugged cast aluminum throttle lever that resists breakage in cold weather and during transport, unlike fragile plastic controls.
• Shock-Isolated Handle: Large, heavy-duty rubber shock mounts isolate the guide handle from the gear case, significantly reducing vibration transfer to the operator.

Warranty & Specs

• Engine: Yanmar L48 Diesel (4.7 HP)
• Impact Force: 4,046 lbs
• Shoe Size: 12.8" x 11"
• Jump Height: 2" - 3"
• Impacts Per Minute: 650 - 680
• Bellow Warranty: 3-Year Guarantee
• Weight: 172 lbs (Net) / ~190 lbs (Operating)
• SKU: BTR78Y
• Manufacturer: Beton Trowel

Beton Trowel Tamping Rammer Yanmar L48 | Diesel Industrial Series

The Diesel Solution for Heavy Clay and Trenches

For industrial contractors and utility crews who run a diesel-only fleet, keeping a can of gasoline around just for a tamper is a logistical nightmare. The Beton Trowel Tamping Rammer 4046 LBS solves this problem by integrating the rugged Yanmar L48 diesel engine. This allows you to fuel your handheld equipment from the same transfer tank as your excavators and loaders, eliminating fuel mix-ups and ensuring your site remains compliant with safety regulations that restrict gasoline use.

While the engine offers convenience, the performance is pure brute force. Weighing in at approximately 190 lbs operating weight, this machine uses its extra mass to deliver a punishing 4,046 lbs of impact force. This high-velocity impact is essential for "shearing" cohesive soil particles, forcing air pockets out of sticky clay and heavy silt that lighter gas-powered rammers often struggle to consolidate. It ensures that your trench backfill meets density specs the first time.

Durability is engineered into the components that take the most abuse. The heart of the impact system—the bellow—is a premium polyurethane component manufactured in Germany. It is designed to withstand millions of flex cycles without splitting and comes with a 3-year guarantee. The internal gears and impact parts are precision-machined and cast to tight tolerances, ensuring smooth operation and reducing the heat buildup that kills lesser machines.

Operator comfort is critical when wrestling a heavy diesel rammer. To mitigate fatigue, the handle system floats on large, heavy-duty rubber shock mounts. These absorbers isolate the operator's hands and arms from the violent vertical motion of the gear case, allowing for precise control when working around sensitive pipework or manholes without the punishing vibration usually associated with diesel equipment.

Control in the trench is managed by a solid cast aluminum throttle lever. Unlike plastic levers that become brittle and snap in freezing temperatures, this aluminum assembly is built to survive the rough handling of a construction site. It gives the operator distinct control over engine RPM and jump height, allowing for high-impact compaction in deep lifts or lighter tamping near the surface.

To protect the precision diesel engine from the dust-choked environment of an excavation, the machine features a multi-stage filtration system. An oversized air cleaner on the crankcase and a two-stage fuel filter work in tandem to trap abrasive grit before it reaches the combustion chamber or injectors. The Beton Trowel Tamping Rammer 4046 LBS is the heavy-duty, single-fuel solution for the professional jobsite.

Why Choose The BT Yanmar L48 Tamping Rammer?

Yanmar L48 Diesel Power

Powered by the industrial Yanmar L48 diesel engine, allowing for single-fuel fleet standardization and eliminating the safety risks and logistics of carrying gasoline on site.

Heavy-Hitting 4,046 lbs Force

Generates a massive 4,046 lbs of impact energy, utilizing the extra weight of the diesel platform to drive deeper compaction in stubborn clay and cohesive backfill.

German-Made Polyurethane Bellow

Equipped with a high-grade German-manufactured bellow that is guaranteed for 3 years, ensuring the most stressed component on the machine won't fail prematurely.

Precision-Machined Impact System

All internal impact components are precision machined and cast, creating a tighter, smoother-running gear system that reduces friction and extends the service life of the rammer.

Advanced Anti-Vibration Mounts

The guide handle is isolated from the main body by large heavy-duty shock absorbers, drastically reducing hand-arm vibration to keep operators comfortable during long shifts.

Durable Cast Aluminum Throttle

Features a rugged cast aluminum throttle lever that withstands impact and cold weather far better than the plastic controls found on budget competitors.

Optimized 11-Inch Trench Shoe

The 11-inch wide laminated shoe is sized perfectly to fit inside standard utility trenches, allowing for effective compaction of pipe bedding without needing to widen the excavation.

Additional Options: Check out other Tamping Rammers or other Beton Trowel options

Beton Trowel Tamping Rammer BTR78Y Technical Specifications
