Get this heavy-duty diesel reversible compactor today to ensure deep, professional soil stabilization on your toughest jobsites.
Any Time. Any Day.
(844)-498-2313
We offer 24-hour chat support
Unlock Exclusive Benefits Today:

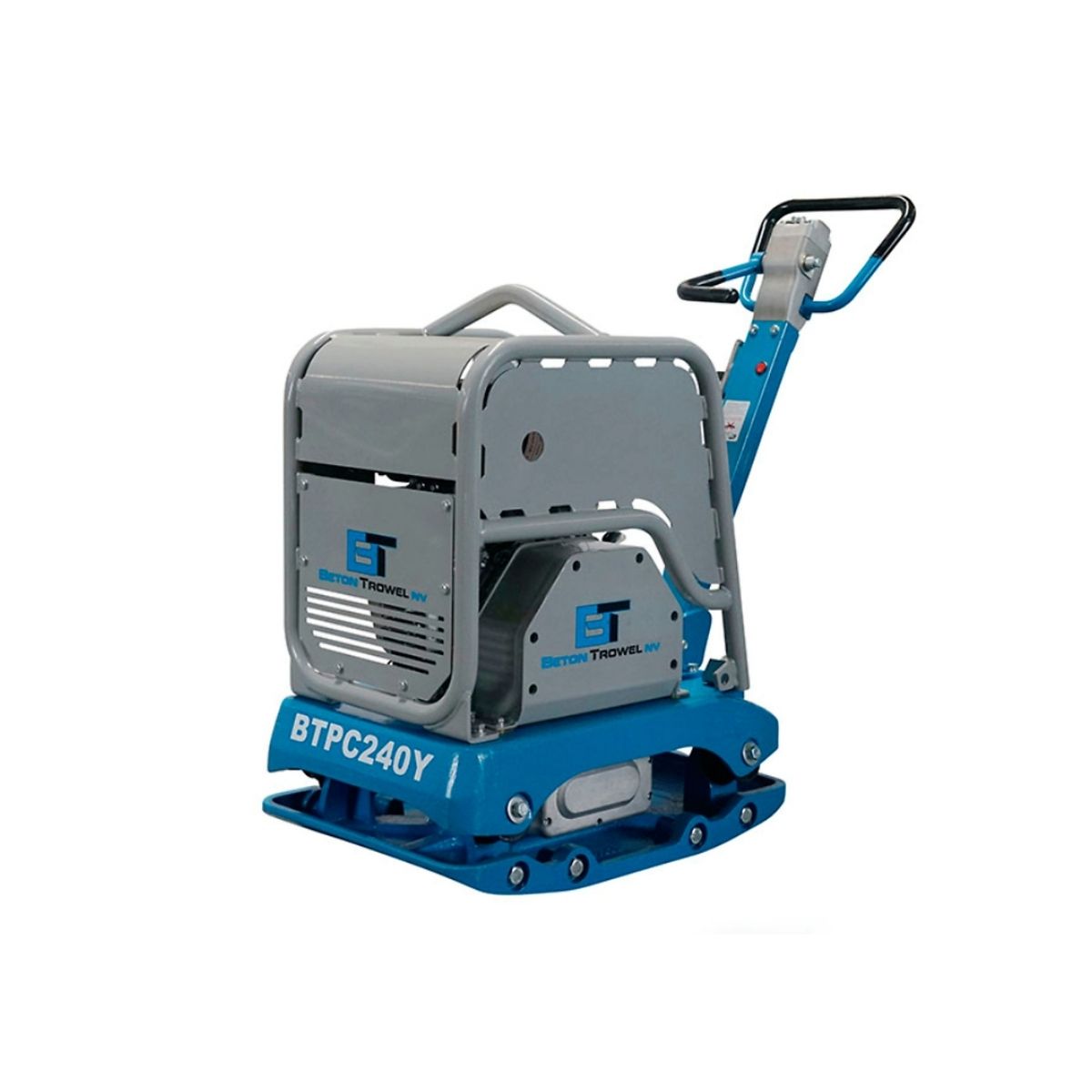

When your jobsite runs on diesel, your small equipment should too. The Beton Trowel 18 Inch Reversible Plate Compactor combines the convenience of single-fuel fleet management with the heavy-hitting power required for structural compaction. Weighing in at 573 lbs, this machine is designed to deliver deep soil stabilization in environments where lightweight plates simply float on the surface. It is the workhorse solution for backfilling trenches, foundations, and road subbases.
The standout feature of this model is its hydraulic reversing mechanism. Unlike mechanical systems that can be clunky or hard to engage under load, the hydraulic lever on this unit offers smooth, fingertip control. You can switch from forward to reverse instantly, allowing you to compact right up to a trench wall or obstacle and back away safely. This agility eliminates the need to manhandle the machine in confined spaces, saving your crew from fatigue and potential injury.
Powering this performance is the Yanmar L70 diesel engine. Beton Trowel selected this engine for its legendary durability and high torque output, which is essential for maintaining the 5,200 VPM vibration frequency under heavy soil loads. The diesel platform also offers extended runtimes and eliminates the risk of fuel contamination on sites where gasoline is not readily available.
Durability is engineered into every inch of the machine, starting with the base. The Beton Trowel 18 Inch Reversible Plate Compactor features a base plate cast from high-strength ductile iron. This material provides exceptional resistance to cracking and wear, ensuring the plate maintains a flat, consistent contact surface even after years of compacting abrasive crushed rock and jagged aggregate.
Transporting a 573 lb machine requires smart design, and this unit delivers with an integrated hoist hook recess. Centered on the roll cage, this lifting point allows you to easily hoist the compactor into deep excavations or onto a flatbed using a crane or excavator bucket. The frame itself is a fully enclosed roll cage, protecting the engine and components from falling debris and rough handling during transport.
Maintenance and longevity are further enhanced by the heavy-duty cast aluminum belt guard. Unlike plastic covers that can crack or melt, this rigid guard protects the clutch and belt system from physical impact and dust ingress while helping to dissipate heat. From the cast aluminum throttle lever to the shock-mounted handle, every component is built to withstand the harshest construction environments.
Hydraulic Reversing Control
Features a hydraulic lever system that allows for instant, smooth transitions between forward and reverse, providing superior maneuverability in dead-end trenches and tight foundations.
Yanmar L70 Diesel Engine
Powered by the robust Yanmar L70, delivering high torque for deep compaction and allowing for single-fuel convenience on diesel-only jobsites.
Heavy-Hitting 35 kN Force
Generates approximately 7,868 lbs (35 kN) of centrifugal force, providing the deep impact energy needed to meet strict density specifications on structural backfill.
Ductile Iron Base Plate
Constructed with a ductile iron base that offers far greater resistance to fracture and abrasive wear than stamped steel, ensuring a longer service life on rocky terrain.
Enclosed Roll Cage
The engine is protected by a heavy-duty tubular steel frame that acts as a roll cage, shielding critical components from crushing damage and falling jobsite debris.
Integrated Lifting Point
Designed with a central hoist hook recess built into the frame, enabling safe and balanced lifting into trenches using chains or straps without specialized rigging.
Cast Aluminum Protection
Uses a rigid cast aluminum belt guard and throttle lever to resist impact damage and dissipate heat, replacing the fragile plastic components found on lesser machines.
Additional Options: Check out other Compaction Equipment options or other Beton Trowel options
| Specification | Technical Data |
|---|---|
| Engine Model | Yanmar L70 Diesel |
| Centrifugal Force | 35 kN (7,868 lb) |
| Plate Dimensions | 27.5" L x 17.7" W |
| Vibrations Per Minute | 5,200 VPM |
| Travel Speed | 75 ft/min |
| Weight | 573 lb |
| Max Grade | 35% |
| Base Material | Ductile Iron |
| SKU | BTPC240Y |
| Manufacturer | Beton Trowel |
